Alto Lindoso is a 630 MW hydropower plant situated on the Lima river in Portugal, installed with a 110m tall dam impounding its reservoir. Commissioned in 1992, the site represents a conventional hydro plant including two Francis turbines designed for high head (pressure) and power generation (without pumping). In XFLEX HYDRO, low cost opportunities to extend operating range and optimise power flexibility will be tested at the plant, and compared to the variable speed case.

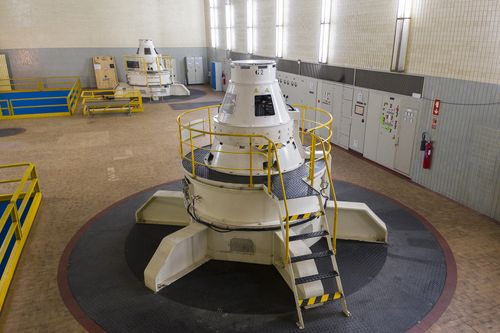

Caniçada is a 70 MW hydropower plant with reservoir storage located in northern Portugal, originally commissioned in 1954 and more recently refurbished in 2017/2018. With two generating units rated at medium head and power generation, the aim for Caniçada in XFLEX HYDRO is to evaluate flexibility opportunities for medium scale hydro and, in particular, simulate potential conversion to variable speed.

View our video about the Alto Lindoso & Canicada project.

‍

Objectives

Alto Lindoso

Evaluate low CAPEX opportunities to extend services offered by an existing reservoir storage plant (Francis turbine type) and compare them to a conversion to variable speed. Options to investigate are:

Extension of the operating range targeting an almost continuous power output from near zero to rated power;
Advanced joint control to adapt the dispatching rules according to optimisation criteria (efficiency, wear and tear, maintenance plan, etc.).

These opportunities will be compared to a conversion to variable speed for a high head, large output reservoir storage hydropower plant - through numerical analysis and experimental investigation.

‍

Caniçada

Transpose evaluation to Caniçada, a medium head, small size reservoir storage plant, and assess the potential of enhanced system integration of the full-scale frequency converter technology at this type of hydropower site.

Due to the cost of the potential conversion, the adaptation to variable speed and validation of the associated benefits will not be implemented in full-scale at Caniçada, but rather will be carried out through numerical simulations and a software-in-the-loop reduced scale model on electrical test bench.

‍

Key Tasks

Alto Lindoso

Initial studies
Database feed-in for the Alto Lindoso demonstrator
Evaluation of conversation to variable speed operation
Smart Power Plant Supervisor (SPPS) adaption to enhanced reservoir storage hydropower plant (RHP)
Installation and operation
Conclusions

‍
